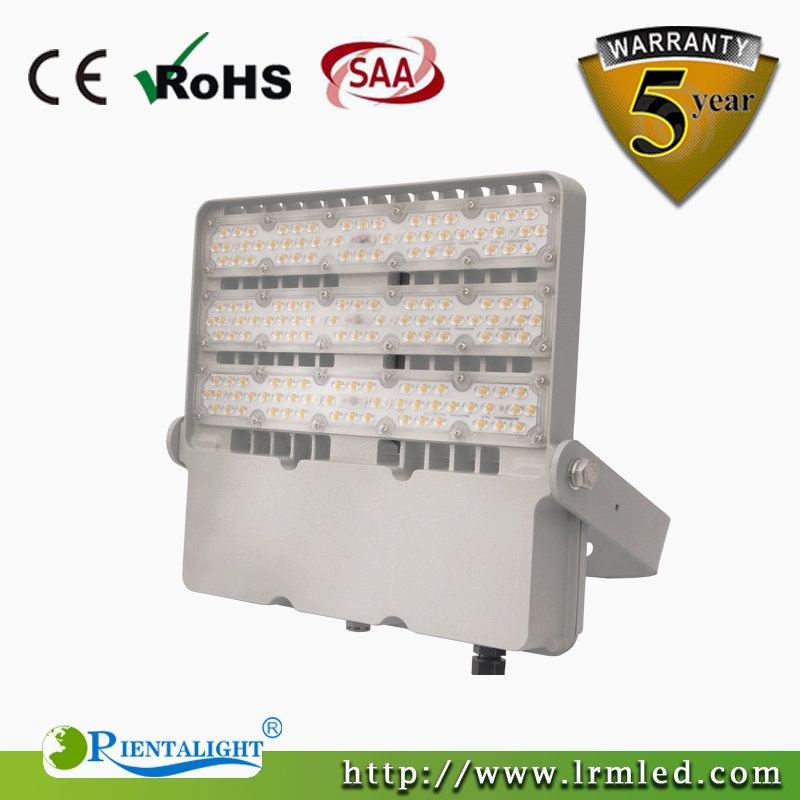

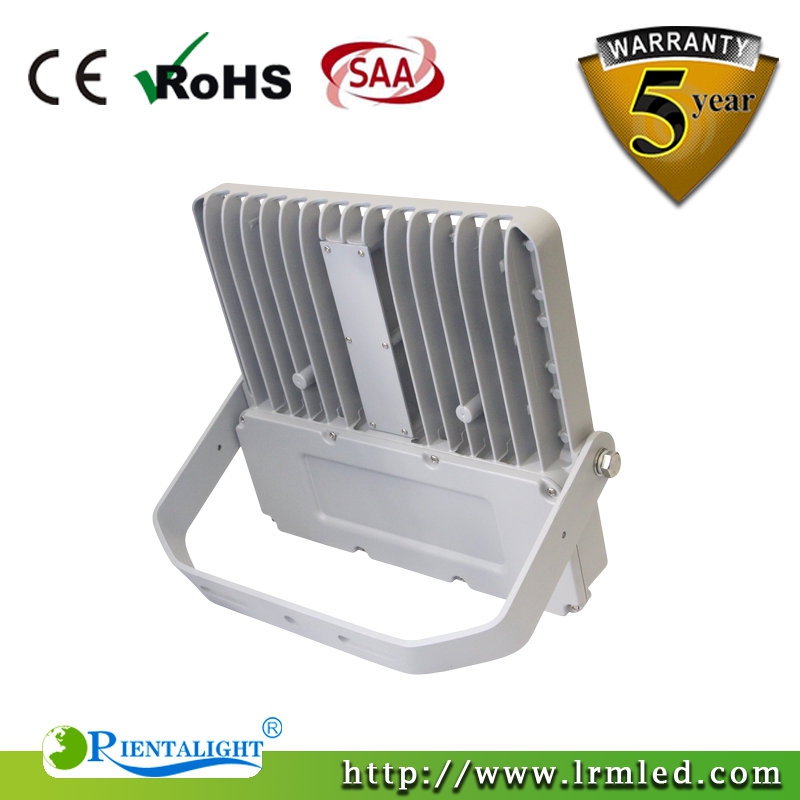

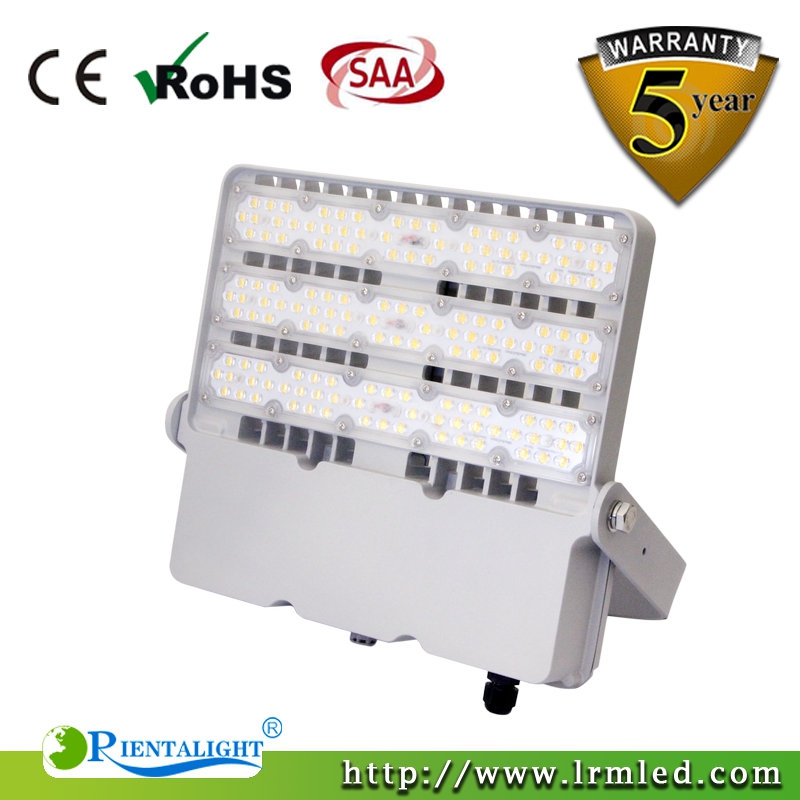

Module led flood lights provide a versatile solution for both outdoor flood lighting and indoor high bay lighting applications such as parking lots, warehouses, building accents,gymnasiums, golf courses, manufacturing facilities, hangars, metro stations, loading docks, car dealerships, billboards, high mast lighting etc. High performance rugged die cast aluminum heatsink provides high effective heat dissipation for led modules, and to ensure low led junction temperature and long lifespan of leds, high lumens output. Taking Super brightness of philips or osram SMD3030 and Meanwell led driver to assure top quality.Module led flood light is available in a wide range of light outputs that can replace 150W-2000W HID light fixtures and multiple photometric distributions of 30, 60, 90 and 80*140 degrees.Top quality polyester poweder coating and IP65 grade will assure superior weatherability against water penetration, rust and fade against UV.This series of module led flood lights can be anti-level 17 hurricane, impact grade is IK08. With warranty 5 years, it is really a fit and forget products for your project.
Features:
1. Low energy consumption, can replace high pressure sodium light directly;
2. Advanced technology: Famous Osram/Philips led chips and high quality Meanwell/Sosen power supply are used, realizing long-term reliable and stable working without failure and maintenance;
3. High quality aluminium body,patented cooling body design;
4. Reasonable light distribution: wide lighting angle, and ensure an ideal uniformity of brightness on the road surface, keep the LED lighting efficiency on a high level.
5. Long lifespan: up to 50,000 hours, is 5-10 times working life than a traditional light source;
Specifications:
Item No.: FL6150
Product Model: LM-FLG365P150Y06-CW
Power (W): 150 Watts
Size(mm): 365*365*60mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 18000lm / 22500
LED Quantity: 144Pcs
Led Type: OSRAM /PHILIPS
Beam Angle: 30°/60°/90°/80*140°
IP Grade: IP66
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Operating Temperature: -40-60℃
Anti-lightning: 6KV
CRI: >70
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years

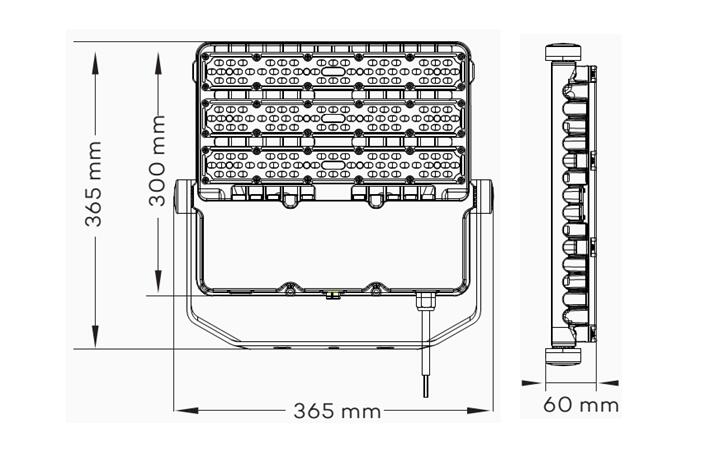

Dimensions:
Multiple Beam Angle for Option:
.jpg)

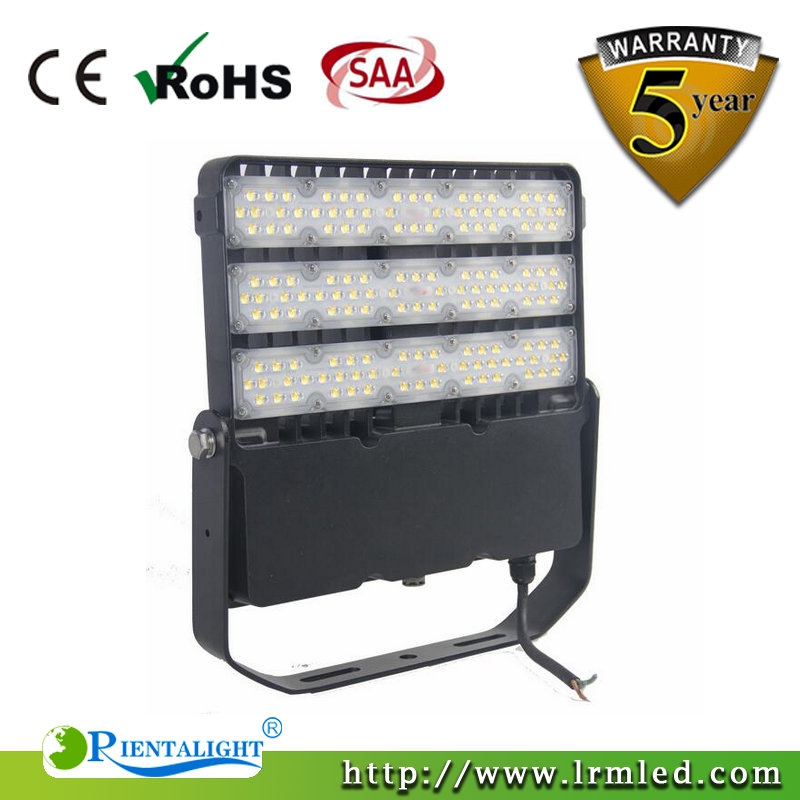

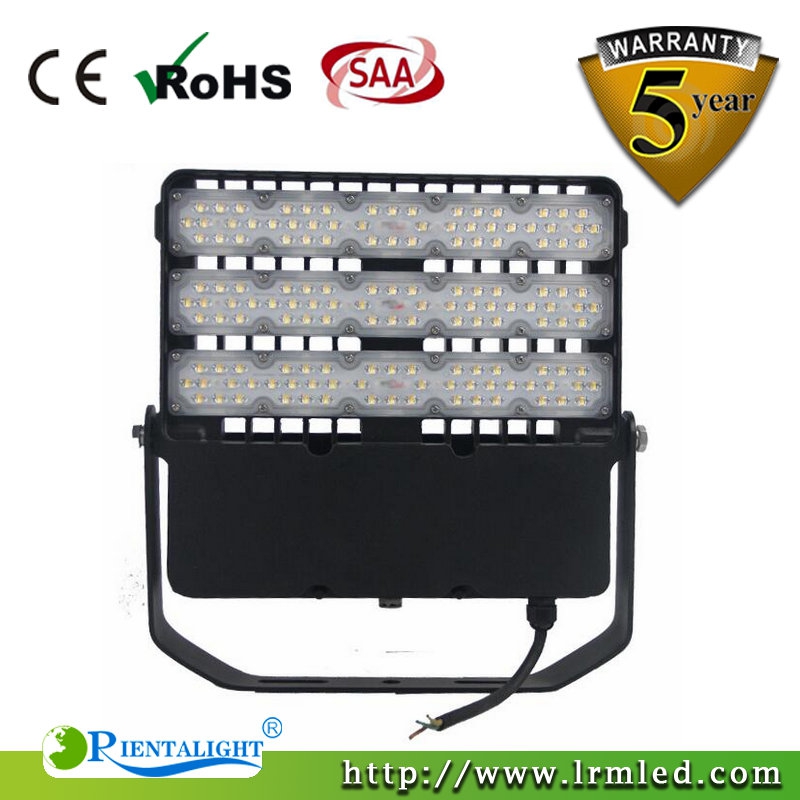

Two Body Color for Option:

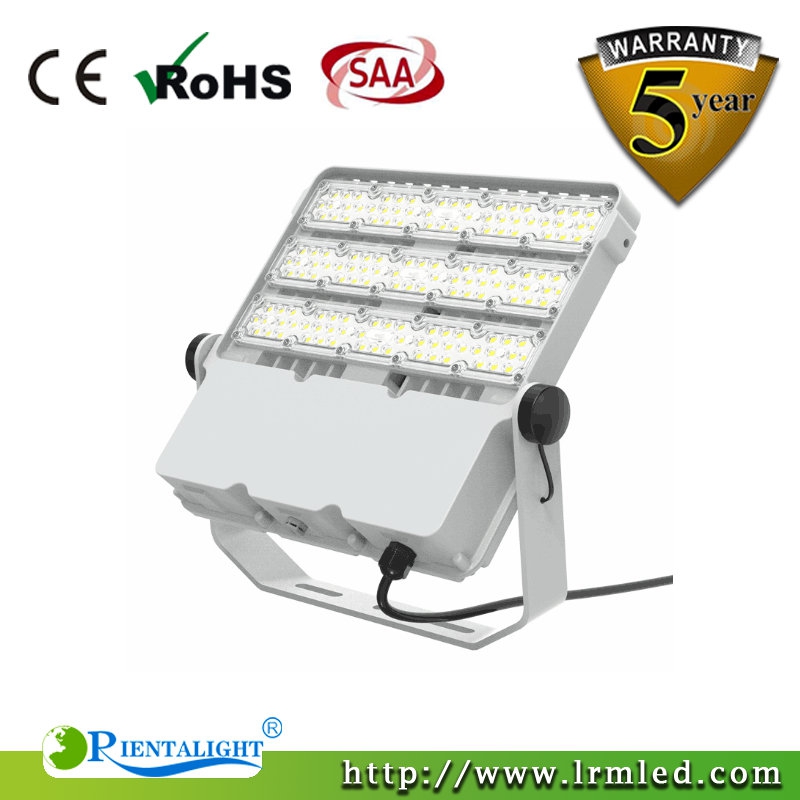

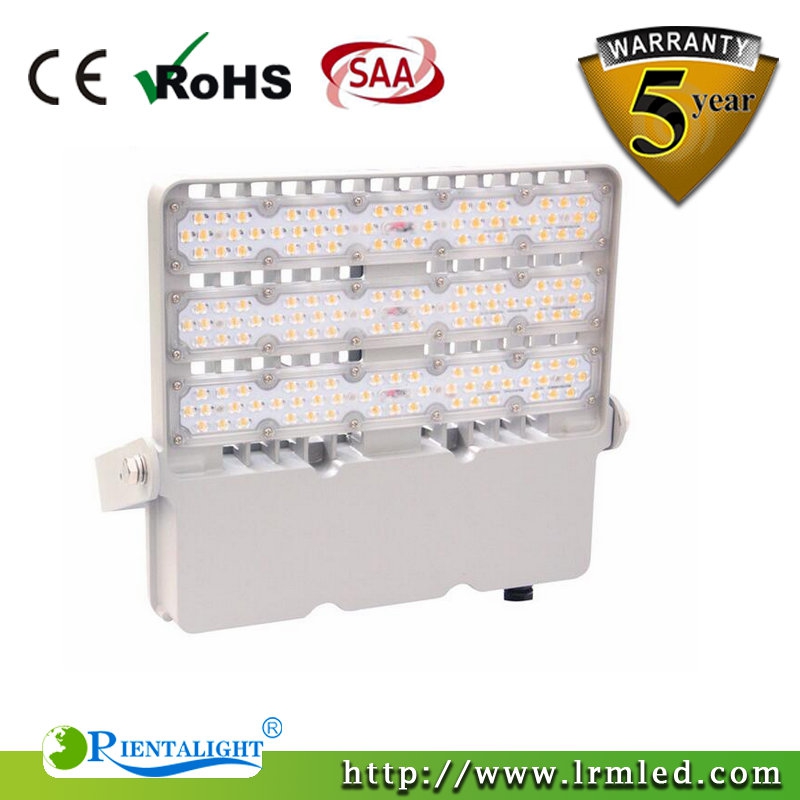

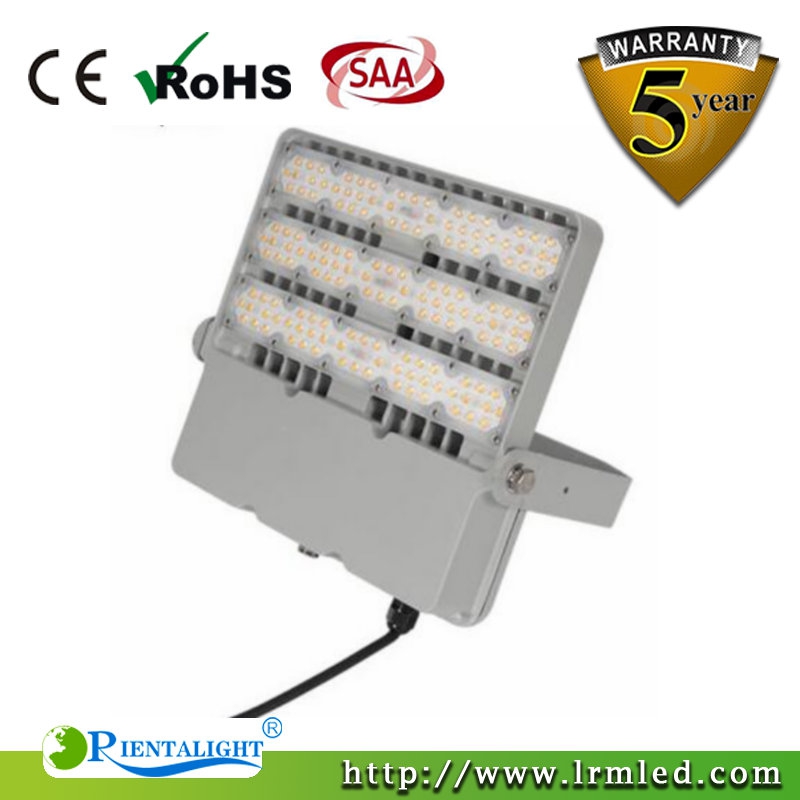

More Models Show:
Applications:
LED flood Light is widely used in Tunnel, Football field, Stage, Buildings, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse, Shopping Mall, Exhibition Hall, Gas Station, Highway, Toll Station, Dock etc .
Installation guide:
With Support Frame: Fix the bracket on the wall by screws and then adjust the lamp body to the proper orientation.
.jpg)
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 7-15 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Cautions:
·Pay attention to the voltage before using.
·Don‘t press LED surface.
·Don‘t take apart the product or replace mechanical and electronic components.
·Don‘t stare at the strong light for a long time as it may cause injury to eyes.
.gif)
