Features:
* Special design with best heat management system.
* Flame Retardant material.
* High lumen effect: 140lm/W.
* LEDs and the led driver are protected from bugs, dust and humidity because cover over them.
* IP64 waterproof design, can use for wet location.
* 360 degree beam angle.
* 6000V high voltage surge protection.
* CE,RoHS approval.
* Suitable for enclosed fixture using.
* Resistant to shock and vibration.
* Start without delay and flicker free. Instant ON/OFF operation.
* Long operation life time, above 50,000hours. Low maintenance costs.
Specification:
Item No.: CL330
Product Model: LM-CLG93E030Y03-WW/NW/CW
Power (W): 30Watts
Size(mm): Φ93*221mm
Lamp Base: B22/E26/E27/E39/E40
Input Voltage(V): AC100-277V50/60Hz
Color(CCT): 2000K/3000K/4000K/6000K
Luminous Flux: 4200lm
LED Quantity: 224Pcs
Led Type: SMD2835
PC Cover: Clear PC/Frosted PC
Beam Angle: 360°+180°
CRI: 83Ra
PF: >0.9
IP Grade IP64
Lifespan: 50,000hours
Warranty: 3 years
Advantages:

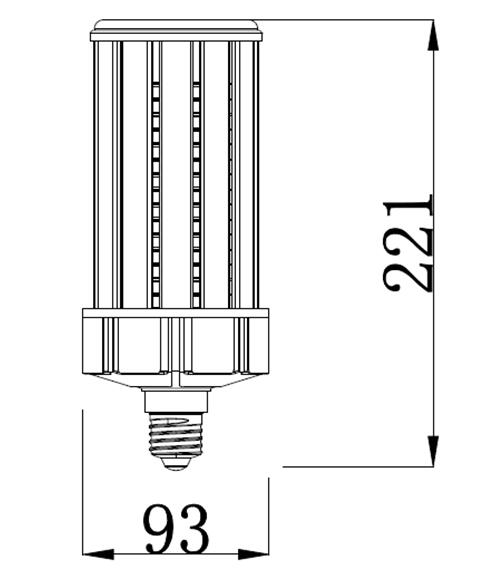

Dimension:
Application:
LED Corn Light mainly used in garden, street, warehouse, shopping mall, wall light, parking Lot, courtyard, square, park, airport, subway, gymnasium, etc.. Can be used in the indoor or outdoor IP65 or IP67 closed fixtures.
.jpg)
Replacement Fixture:
IP65 LED Corn Light from LED Orientalight Co., Limited can be installed in the following fixtures, which is an ideal retrofit light source to replace high pressure sodium(HPS), metal halide light(MHL), compact fluorescent light(CFL), HID, SON light and incandescent bulbs etc.
Packing:
Installation Guide:
Notice for User:
·Please turn off power before installation.
·Pay attention to the voltage before using,after connectiong the power line, please make sure the wiring section is insulated.
·Make sure remove or bypass the ballast in the fixture before installation the corn light.
·Suitable for wet location.
·Suitable for enclosed fixtures.
·Do not use with dimmers.
·Do not press LED surface.
·Do not take apart the product or replace mechanical and electronic components.
·Do not stare at the strong light for a long time as it may cause injury to eyes.
·If any doubt about the installation or use of this product, consult a competent electrician or technician.
FAQ for LED Corn Light:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 8-9 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
