Features：
1) High Luminous Efficiency, up to 135lm/watt.
2) Super brightness Osram LED chip, LM80 report available.
3) Superly reliable well-known brand Meanwell HBG LED driver, which with built in 1-10V dimming function.
4) Unique appearance, innovative heat sink design ensures superior heat management.
5) Low operating temperature, makes it extremely verstile under different easy/ hard operating conditions.
6) Color temperature 3000k, 4000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
7) Superior color rendition compared to conventional luminaire, CRI>80.
8) Global Voltage Input 90-305VAC, 50/60Hz.
9) Light weight, 30%-50% shipping cost saving.
10) Easy installation, suspending installation or wall mounted.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) CE and RoHS approved.
16) 5 Years Warranty.
Specifications:
Item No.: HB6300
Product Model: LM-HBG460O300Y06-WW/NW/CW
Power (W): 300Watts
Size(mm): ￠460*220mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 40500lm（135lm/W)
LED Quantity: 483Pcs
Led Type: OSRAM/PHILIPS LED
Beam Angle: 60°/90°/120°
CRI: 85Ra
PF: 0.95
IP Grade: IP65
LED Driver: MEANWELL-HLG -320
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Lifespan: 50,000hours
Warranty: 5 years

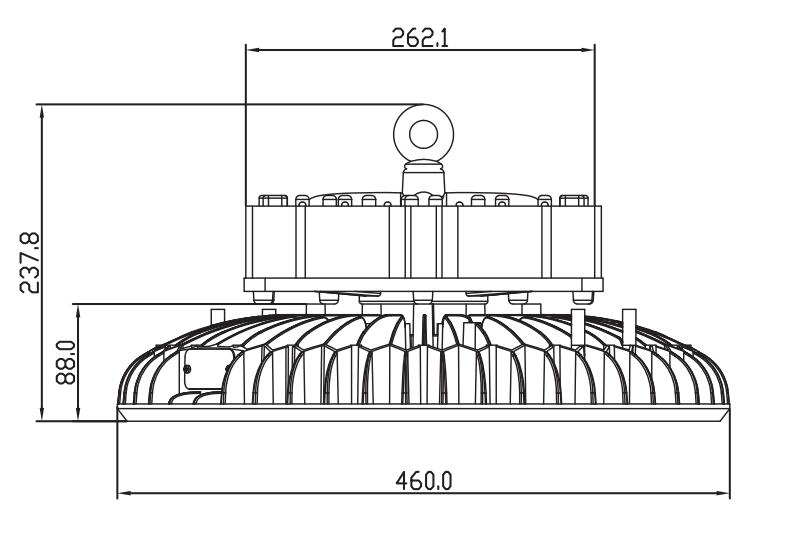

Dimmensions(mm):

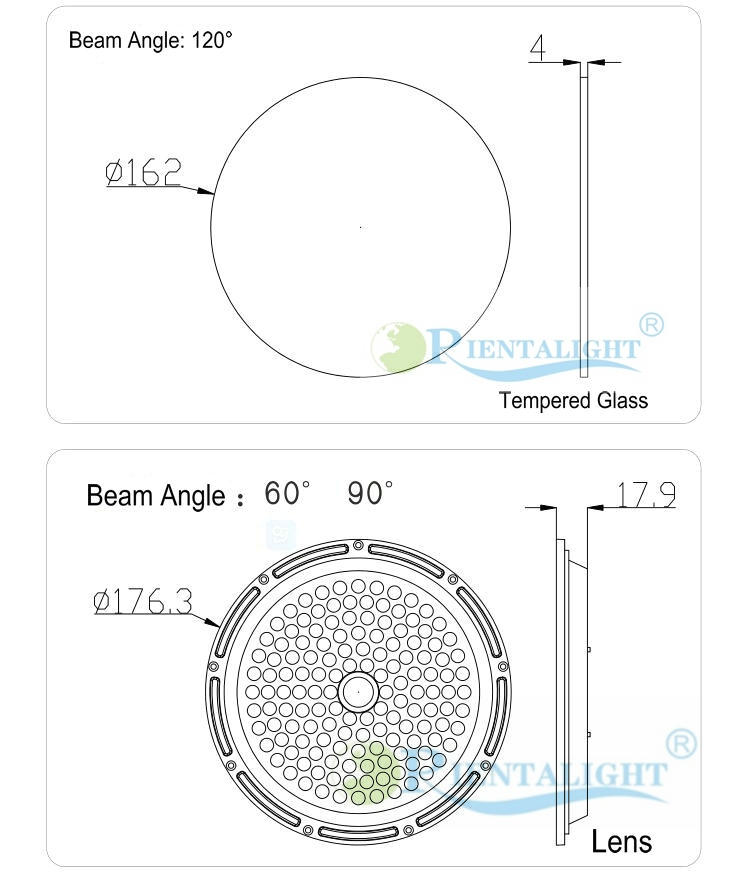

Beam Angle:

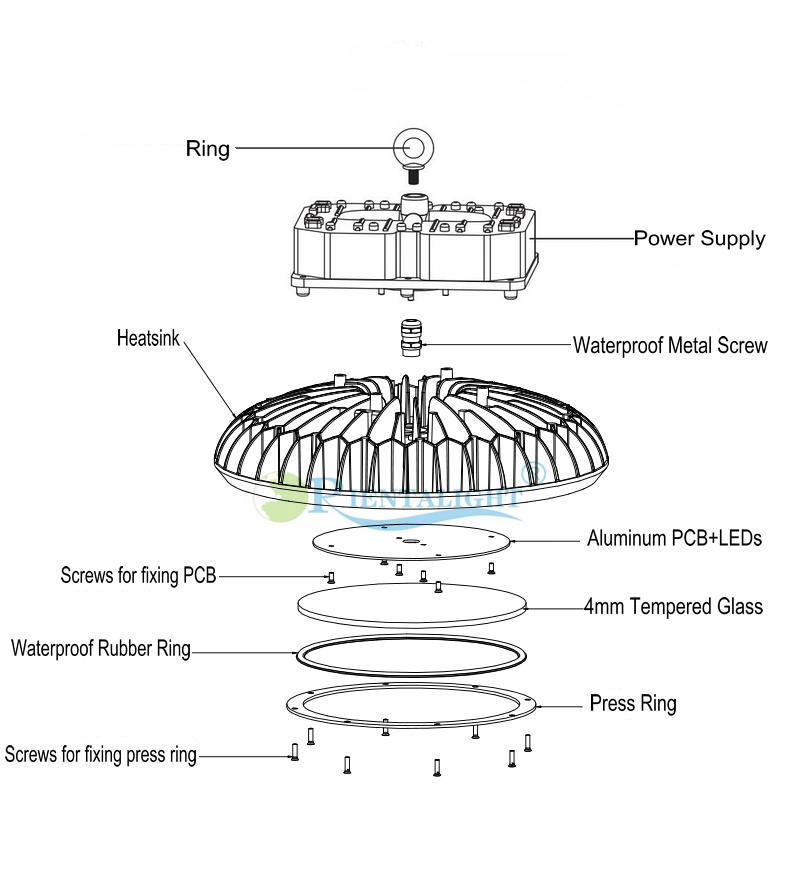

Exploded View:
2) Super brightness Osram LED chip, LM80 report available.
3) Superly reliable well-known brand Meanwell HBG LED driver, which with built in 1-10V dimming function.
4) Unique appearance, innovative heat sink design ensures superior heat management.
5) Low operating temperature, makes it extremely verstile under different easy/ hard operating conditions.
6) Color temperature 3000k, 4000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
7) Superior color rendition compared to conventional luminaire, CRI>80.
8) Global Voltage Input 90-305VAC, 50/60Hz.
9) Light weight, 30%-50% shipping cost saving.
10) Easy installation, suspending installation or wall mounted.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) CE and RoHS approved.
16) 5 Years Warranty.
Specifications:
Item No.: HB6300
Product Model: LM-HBG460O300Y06-WW/NW/CW
Power (W): 300Watts
Size(mm): ￠460*220mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 40500lm（135lm/W)
LED Quantity: 483Pcs
Led Type: OSRAM/PHILIPS LED
Beam Angle: 60°/90°/120°
CRI: 85Ra
PF: 0.95
IP Grade: IP65
LED Driver: MEANWELL-HLG -320
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Lifespan: 50,000hours
Warranty: 5 years
Dimmensions(mm):
Beam Angle:
Exploded View:

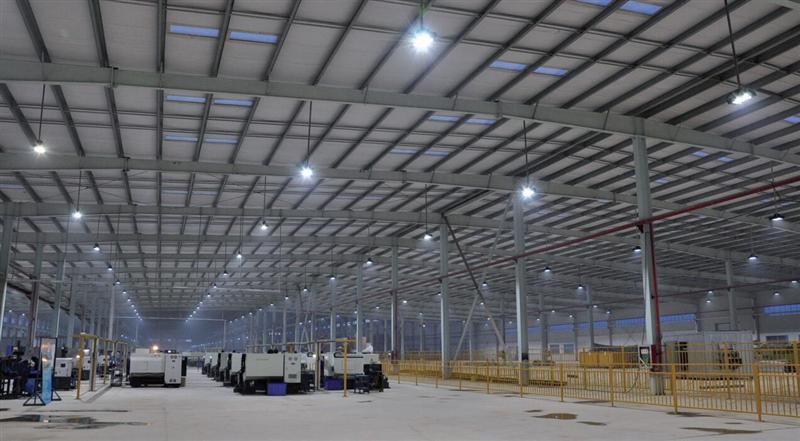

Factory lighting,Recreation center lighting, Stockroom lighting, Supermarket lighting,Warehouse lighting, passway lighting, Shop lighting etc.

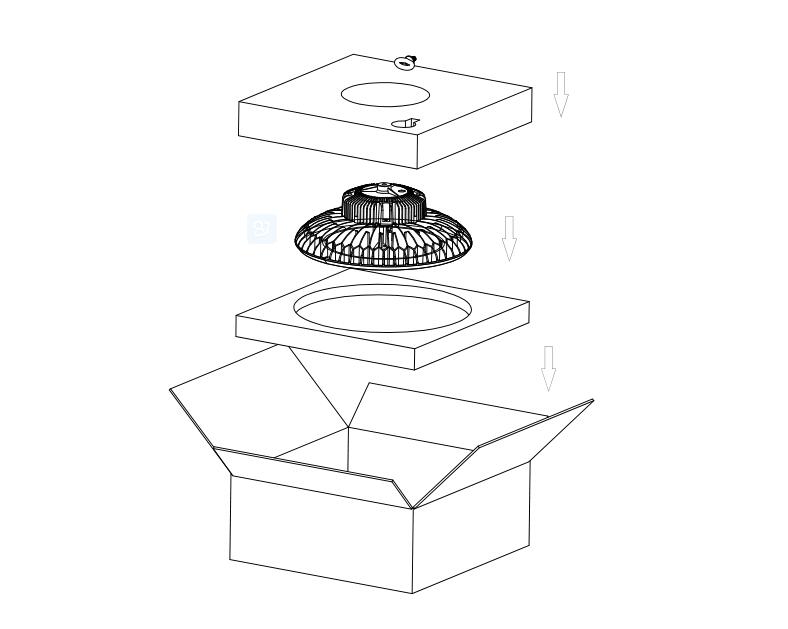

Package:
