Features:
1) UFO shape led high bay with innovated design,much lighter and smaller.
2) Well-known brand Osram SMD3030.
3) Meanwell HBG Series led driver, built in 1-10V dimming function.
4) High Lumens output.
5) Wide aluminum plate design, heat dissipation fast and evenly
6) Working temperature: -30°C ~ + 50°C
7) Saving up to 70% energy savings compared to traditional lamps
8) Environmentally friendly: no lead, mercury and other harmful contaminants.
9) Instant full light. The starting time is less than 0.5 s, no need to wait for warming up the lamp.
10)Longer lifespan: up to 50,000 hours with low lighting decay.
Specifications:
Item No.: HB660
Product Model: LM-HBG235O60Y06-WW/NW/CW
Power (W): 60 Watts
Size(mm): ￠235*111mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 7200lm
LED Quantity: 84Pcs
Led Type: OSRAM/PHILIPS LED
Beam Angle: 120°
CRI: 85Ra
PF: 0.95
IP Grade: IP65
LED Driver: MEANWELL-HBG -60
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Lifespan: 50,000hours
Warranty: 5 years

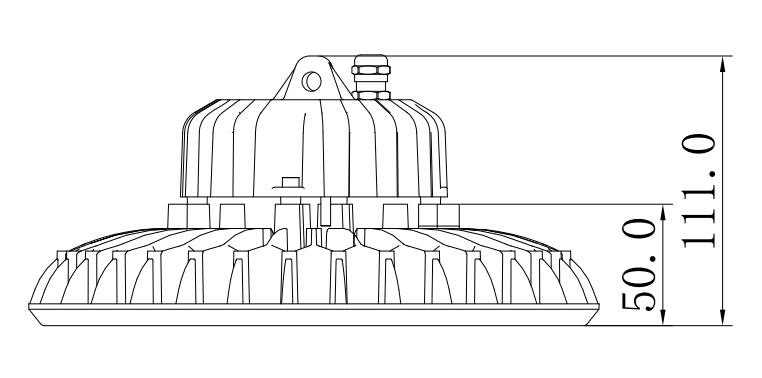

Dimmensions(mm):

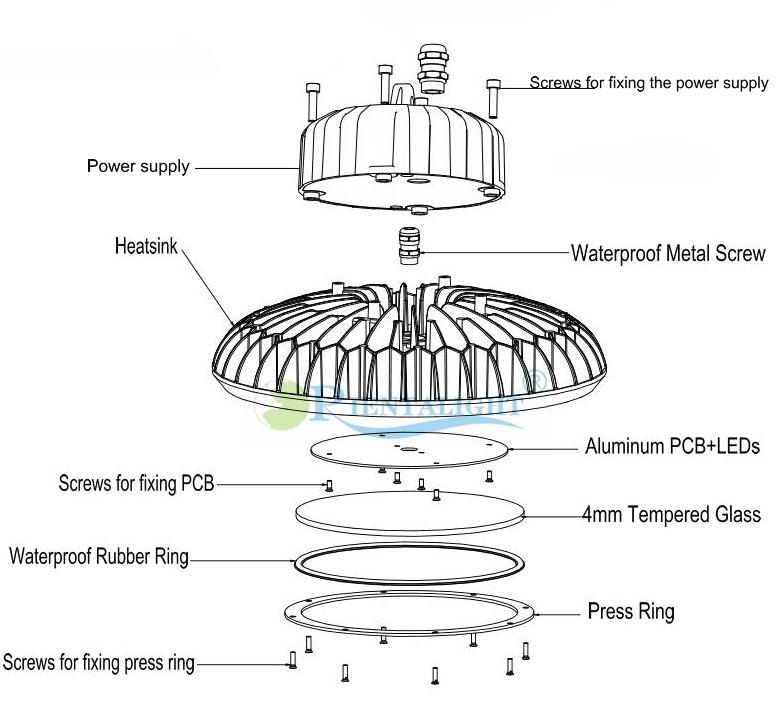

Exploded View:
Applications:
Factory lighting,Recreation center lighting, Stockroom lighting, Supermarket lighting,Warehouse lighting, passway lighting, Shop lighting etc.

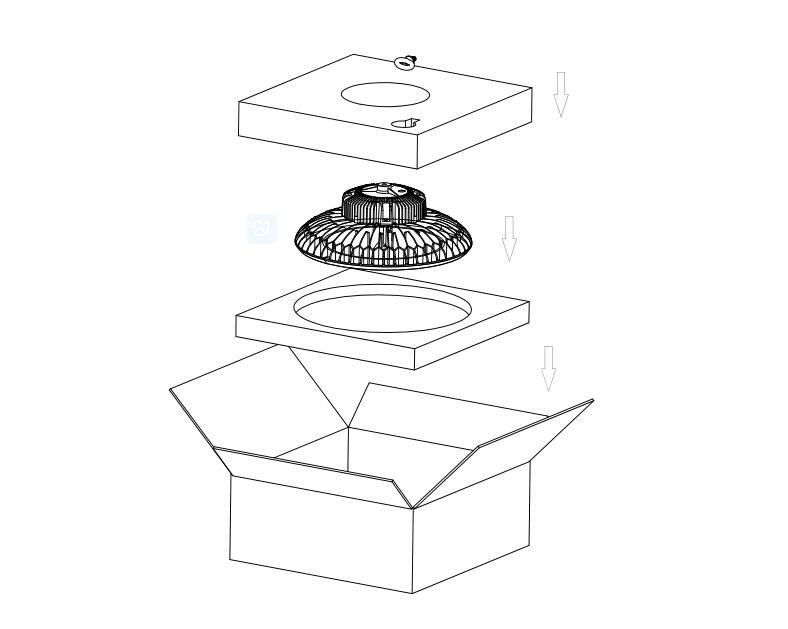

Packing:
.jpg)
FAQ for UFO led high bay Light:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 8-9 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
